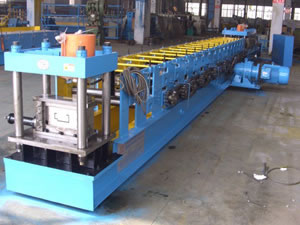

Door Frame Forming Machine

This type of cold forming machine, named door frame forming machine, is used to make specific section profiles by constantly and laterally bending metal plate. It designs slot size for lock set and hinge set. And there are 15 forming stations in the process.

Main technical parameters:
Raw material request: Q235 cold rolled steel.
Material thickness: 0.8mm-1.2mm
Whole line working speed: 12-15m/min
Door frame forming machine motor power: 15KW
The max thickness of material: 1.2mm.
The diameter of the roller axis: ф75mm
Roller material: GCr12, quenching treatment: HRC58-62°
Door frame forming machine driving system: 1.2 inch Chain drive

Wuxi Hai Roll Fone Science & Technology Co.,Ltd is a professional manufacturer and supplier of roll forming equipment machine (Door Frame Forming Machine), slitting line, cut to length line machine and related metal sheet processing equipment in China. The products are mainly used in the construction industry, automobile manufacturing, machine manufacturing, electronics industry and many other areas. The products (Door Frame Forming Machines) have been sold to the United States, South Africa, Portugal, Indonesia and other countries.
