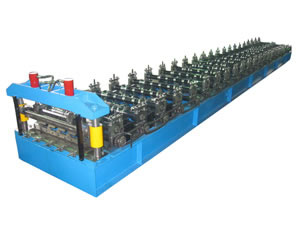

IBR Roll Forming Machine

It's one type of Wall/Roof Panel forming machine. You will be interested in its rapid working speed, which is within 12—35m/min, not including the cutting time.

Technical parameter of IBR686 Fast-speed Forming Machine:
Roll stations: 23stations
Cutting system: hydraulic stop-to-cut
Cutting Length tolerance: 3±1.5mm
Working speed: 12-35m/min (not including the cutting time)
Thickness of IBR686 Fast-speed Forming Machine: 0.28mm-0.8mm, G550Mpa tensile galvanized or prepainted steel sheet.
Coil input width size: 925mm/1000mm
Material of roller: 45#, HRC45--52
Material of blade mould: Cr12, quenched 58-62
Yakamas drive made in Japan
Size of IBR686 Fast-speed Forming Machine: approx 11.5m×1.5m×1.2m
Way of control: AMS/PLC control
Decoiler: manaul or 5T /10T/15T/20T hydraulic is available
