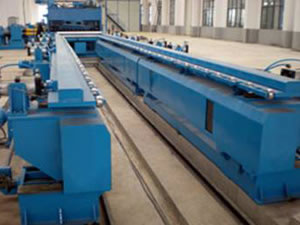

Thick board cut-to-length machine

Description:
It's one kind of cut-to-length line machine., which is used to cut the metal plate by decoiling, leveling, sizing and shearing into the desired length that need to be stacked. This special coil sheet cut-to-length line (CTL Line Machine) is suitable for common carbon steel with coil thickness within 6-25mm, with a cutting speed range of 0--40m/min.

Technical parameter of Sheet Coil Cut to Length Line:
Steel coil grade: common carbon steel, (Q195 and Q235, Q345),
Coil thickness: 6--25mm
Feature of steel coil:δΣs350--550N/mm2
CTL Line Machine Coil width: 900mm--2500mm
Coil outer diameter: ф1200--ф2200mm
Coil width: 900mm--2500mm
Coil inner diameter: ф508, ф610, φ800
Sheet Coil Cut to Length Line Cutting length: 1000mm--12000mm
CTL Line Machine Coil weight: ≤40T
Cutting length tolerance: +/-1mm
Cutting diagonal tolerance: +/-1.5mm
Sheet Coil Cut to Length Line speed: 0--40m/min
Cutting speed: 3pcs of sheet per minute according 6m long

Components of 6mm-25mm×25000mm leveling cut-to-length machine
V-shaped coil platform, hydraulic coil car, hydraulic (tapered form) decoiler, hydraulic guiding and pressing and shovel head unit, pin rolls feeding and first leveling unit, guiding organ, leveling machine, encoding length organ, hydraulic shearing machine, pin rolls organ, hydraulic system and electrical cabinet control system, 6m auto-stacker table.

Flow chart of the CTL Line Machine:
Hydraulic coil car→double tapered decoiler machine→pressing and guiding→pinch rolls feeding and first leveling→guiding--second-time leveling→encoding length set→hydraulic cutting→pinch rolls feeding→stacker system
