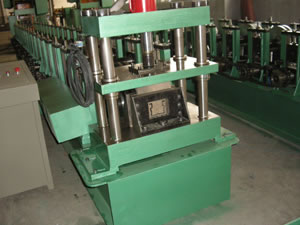

Storage Uprights Forming Machine

Technical parameters:

Motorized  decoiler ≤3T
Leveling machine 5.5kw frequency change driving-motor, speed adjustable
servo motor feeder Yakama Servo motor drive
Punching press 125tons Capacity made in Yangli Group in China
Punching mould Cr12 Mov
Main forming Machine unit Cast iron stands, 16 forming stations, Rolled Thickness:1.5-2.5mm, ower:15kw
Hydraulic cutting of Storage Uprights Forming Machine Cutting blade material Cr12
Roller material Material GCr15,HCR58-62

Technical data of 3in 1 NC servo feeder, straightener and decoiler

Coil Weight: 1000 kg
Strip Width: 300mm
Thickness 1.5-2.5mm
Storage Uprights Forming Machine Coil O. D: 1200 mm
Coil I.D: 508mm
Feed length input 9999.99mm
Feed Speed: 15m/min
Feed accuracy 0.15mm
Storage Uprights Forming Machine Electrics: 380 Volts 50 Hz.
Working direction: option
